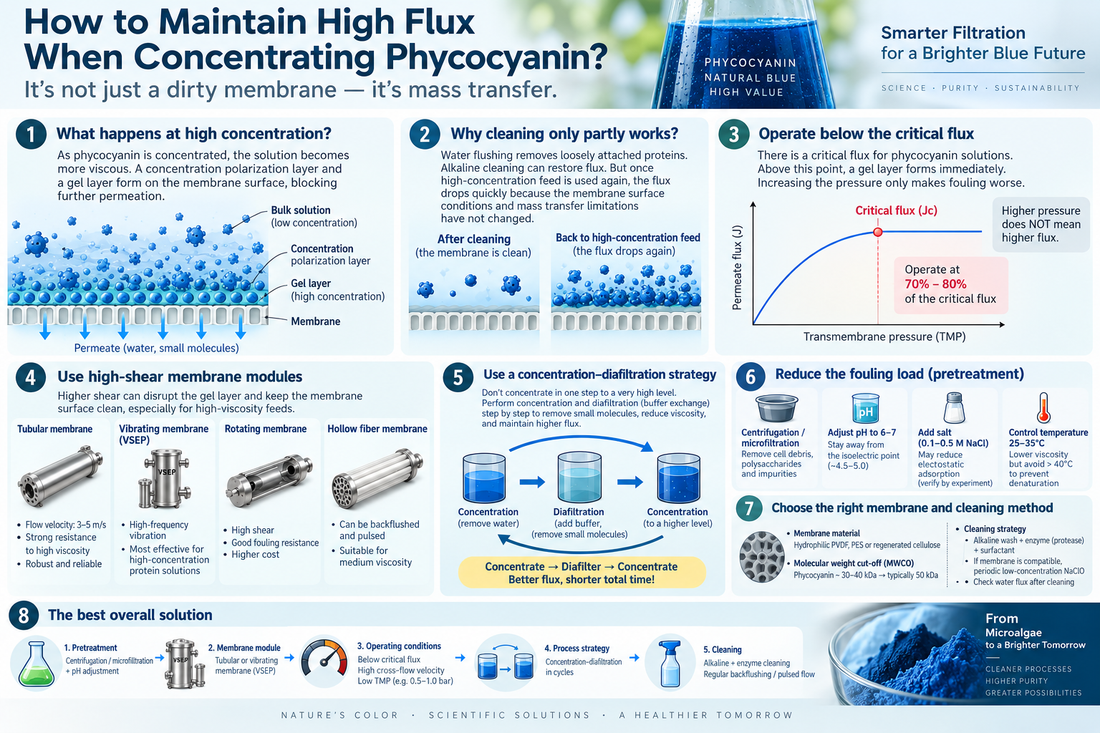

Solution to Sudden Membrane Flux Decline During Phycocyanin Concentration

The sudden drop in membrane flux after phycocyanin concentration is not primarily caused by membrane fouling, but rather by concentration polarization and gel layer formation under high concentration and high viscosity conditions. Rinsing with clean water only partially restores flux, while alkaline cleaning can restore it—yet flux rapidly declines again upon reintroducing high-concentration feed. This indicates that cleaning merely removes deposited proteins without altering the mass transfer conditions at the membrane surface.

Therefore, the "best solution" is not simply intensifying alkaline cleaning, but instead controlling concentration polarization at the membrane surface, reducing feed viscosity, and increasing shear stress at the membrane interface.

If only one hardware-based solution is feasible, the most effective option is switching to a high-shear membrane module (such as vibrating membranes VSEP, tubular membranes, or rotating membranes) and operating below the critical flux.

1. Core Principle: Operate Below Critical Flux

High-concentration feed has a "critical flux." Exceeding this value causes immediate gel layer formation on the membrane surface, where flux no longer increases with pressure and fouling worsens.

Approach:

• Conduct a stepwise flux test: gradually increase TMP, record stable flux values, and identify the point where flux stops increasing linearly.
• Set operating flux to 70–80% of the critical flux.
• Avoid forcing higher TMP; higher TMP leads to denser gel layers.
• Typical ultrafiltration TMP can initially be tested at 0.5–1.0 bar; for highly viscous feeds, even lower pressures may be required.


2. Most Effective Hardware: Enhance Shear Stress at the Membrane Surface

Concentrating high-viscosity feed with conventional spiral-wound membranes is difficult due to low cross-flow velocity and channel clogging.

Prioritize:

• Tubular membranes: allow flow rates up to 3–5 m/s, excellent resistance to high viscosity and fouling.
• Vibrating membranes (VSEP): high-frequency vibration generates strong shear, effectively disrupting gel layers—ideal for high-concentration protein concentration.
• Hollow fiber membranes: support backwashing and pulsatile flow, but shear is limited; suitable for moderate viscosity.
• Rotating/ dynamic cross-flow membranes: high shear, but higher equipment cost.

If current system uses spiral-wound modules, declining flux over time is almost inevitable. Replacing the membrane module is more effective than optimizing cleaning procedures.

3. Process Optimization: Replace "Dead-end Concentration" with "Concentrate-Diafiltration-Concentrate" Cycle

Higher concentration ratios lead to greater viscosity and thicker gel layers.

Solution:

• After reaching a certain concentration, add buffer solution for diafiltration to remove small molecules, salts, and pigments, thereby reducing viscosity.
• Resume concentration. Alternate between concentrate-diafiltration-concentrate cycles.
• At high concentrations, consider diluting slightly before filtration. Although volume increases, total flux often improves and overall processing time may actually decrease.

4. Pretreatment: Reduce Fouling Load

• Centrifugation/microfiltration to remove cell debris, polysaccharides, and impurities.
• Adjust pH to 6–7, away from the isoelectric point of phycocyanin (~4.5–5.0), enhancing electrostatic repulsion.
• Add salt (e.g., 0.1–0.5 M NaCl) to reduce electrostatic adsorption, though effectiveness should be verified experimentally.
• Maintain temperature between 25–35°C; higher temperatures reduce viscosity, but avoid exceeding 40°C to prevent phycocyanin denaturation.

5. Membrane Selection and Cleaning

• Choose hydrophilic modified membranes: PVDF, PES, or regenerated cellulose.
• Molecular weight cutoff: phycocyanin is ~30–40 kDa; commonly use 50 kDa. Too low reduces flux; too high risks leakage.
• Cleaning: Alkaline cleaning is effective, but recommend combining alkaline + enzymatic (protease) + surfactant treatments. If membrane is oxidation-resistant, periodic low-concentration NaClO treatment is advisable.
• After cleaning, measure pure water flux: if water flux recovers but feed flux still drops rapidly, the issue lies in operating conditions, not cleaning.

6. Optimal Integrated Solution

For the best possible outcome, recommend:

1. Pretreatment: centrifugation/microfiltration + pH adjustment.
2. Membrane module: tubular or vibrating membrane.
3. Operation: run below critical flux, with high cross-flow velocity and low TMP.
4. Process: Alternating concentration and filtration to avoid single-stage high-concentration steps.
5. Cleaning: Alkaline cleaning + enzymatic cleaning, with regular backwashing/pulsing flow.

If existing equipment cannot be replaced, at least do three things first: reduce TMP, increase cross-flow velocity, and switch to alternating concentration and filtration—this will significantly improve flux.
